Contextual Fit
Analysis & Design of Adding onto a prexisting building.
Project 2
In this project, I have been tasked to analyze the famous Smith House designed in 1965 by architect Richard Meier and add additions to it. I must introduce new ideas to satisfy the new requests of the family. Anything I add on must respect the original design of the building. The challenge of this project is to strike a balance between the new and old design.
Narrative
The Smith family want additions/extensions to be made for their house. The building right now lacks the space for their workout routine. The entire family wants an Exercise room. Both of the parents want a master suite so that they can have a place to relax in. As for individually, Mrs. Smith has also requested there to be a room that can be dedicated to family visits while Mr. Smith has asked for a rooftop BBQ space. It seems based on these requirements that the Smiths value fitness and social activities.
Hierarchy: Exercise room (Home Gym)
Meta-Idea: Fitness and Social Events
Sorting of Spaces:
Public: Common area and Rooftop
Private: Home Gym, Master Bedroom, and Master Bathroom
Active: Home Gym, Common area, and Rooftop
Group: Rooftop and Home Gym
Individual: Home Gym, Master Bedroom, and Master Bathroom
Existing Floor Plans
Existing Building Systems & Patterns
Conceptual Ideas
Conceptual Meta-Idea
Existing Systems brought into the new addition:
Half Walls
Columns & Girders
Railings
Window Openings

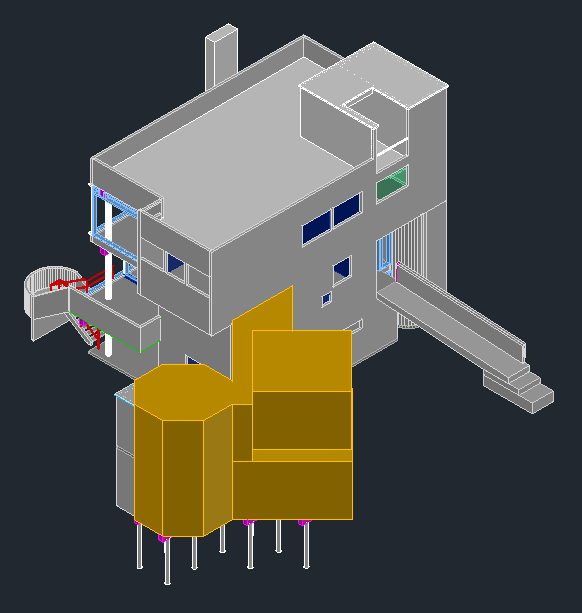

Preliminary Designs
Preliminary 1
Preliminary 2
Preliminary 3
Lower Level
Upper Level
Final Floor Plans
Entry Level
Final Elevations
Final Sections
3D Sections
Exterior Renders
Interior Renders
Final Project
